Battle Born Elite 120W vs 230W: which solar panel fits your camper?
Short answer
Choose between the Elite 120W and 230W by roof fit and the energy your system needs to replace. The 120W is smaller and lighter; the 230W offers more rated output per panel. Neither wattage is a promise of daily harvest. Check roof clearances, mounting and charge-controller compatibility before ordering.
Researched comparison based on current manufacturer information. These products have not been hands-on tested by AllEquipped.
What is the useful difference between the two panels?
The 120W panel offers a smaller footprint; the 230W raises rated output while requiring more roof area and carrying more weight. These are manufacturer specifications, not AllEquipped measurements.
| Listed specification | Elite 120W | Elite 230W |
|---|---|---|
| Model | BBPV-12-120 | BBPV-12-230 |
| Maximum power (at STC) | 120W ± 5% | 230W ± 5% |
| Length × width | 42.13 × 22.83 in | 59.84 × 30.12 in |
| Thickness | 1.38 in | 1.38 in |
| Weight | 15.65 lb | 28.03 lb |
| Voltage at maximum power | 19.08V | 18.37V |
| Current at maximum power | 6.30A | 12.56A |
| Open-circuit voltage | 22.35V | 21.57V |
| Short-circuit current | 6.70A | 13.39A |
| Cells | 33 (3 × 11) | 64 (4 × 16) |
| Listed module efficiency | 23% | 23% |
| Temperature coefficient of power | -(0.5±0.05)%/°C | -(0.5±0.05)%/°C |
| Warranty | 10-year product, 25-year performance | 10-year product, 25-year performance |
| Certification named | None | None |
The figures come from Battle Born’s data sheets for the 120W and 230W, rated at STC: “Irradiance 1000W/m², AM1.5 spectrum, module temperature 25°C”. One line doesn’t reconcile with the others. By our arithmetic, 120W over the listed 42.13 × 22.83 in outline is about 19% of the STC irradiance falling on it, and 230W over 59.84 × 30.12 in is about 20%. Both sheets print “23% Module Efficiency” and neither says how that figure was calculated.
Both listings describe monocrystalline cells, an aluminum frame and tempered glass. Battle Born also advertises ShadeGuard technology. We have not tested that system or measured how much energy it recovers under partial shade.
When would the 120W make more sense?
Start with the 120W when roof layout is the deciding constraint. A vent, rack, air conditioner or roof box can leave an awkward usable space even on a large vehicle. Draw the roof to scale and include installation clearances before choosing a panel by headline watts.
A smaller module can give you more layout options, but the best array depends on the actual space. Several small panels also create more mounting and wiring decisions than one panel. Do not assume the smaller format automatically makes the whole installation simpler.

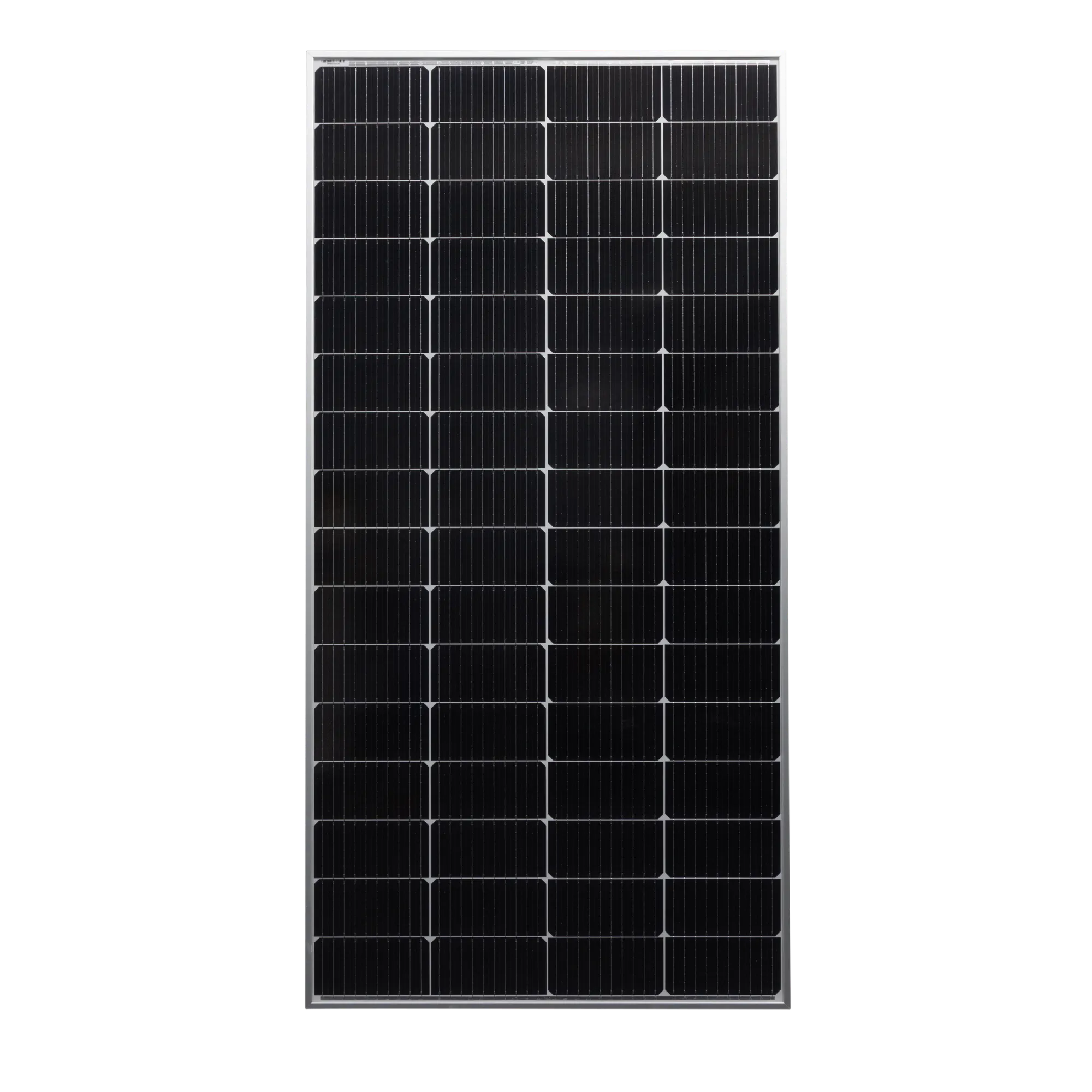

Battle Born Elite 230W 12V Rigid Solar Panel. © Battle Born Batteries. Used with permission..
When is the 230W worth considering?
Shortlist the 230W when its larger footprint fits and you want more nominal output from each mounted panel. Its published rating is 110W above the 120W model. That is a comparison of ratings, not a prediction of how much faster your camper battery will recharge.
Map a typical day’s loads before choosing the array. Roof solar may be a useful contributor to charging without covering every demand in poor weather. Our Battle Born camper power-system guide explains how storage, charging and loads fit together.
What should you confirm before buying?
Check the current installation drawing, mounting approach, cable run and charge controller against the exact panel and intended array. The 12V system label does not mean the panel’s output voltage is fixed at 12V. Confirm controller input limits and battery charging requirements with the equipment manuals or installer.
These are rigid panel listings. Establish which brackets, cables and other components are included in your order rather than treating the panel photograph as a complete charging kit. For a new build, compare the complete installed arrangement; for an existing system, identify what will have to change.
Explore the Battle Born brand guide or browse more gear with official photos.
The short version
Choose between the Battle Born Elite 120W and 230W by the roof space you actually have and the energy the system has to replace, not by headline watts. The 120W is 42.13 × 22.83 in and 15.65 lb; the 230W is 59.84 × 30.12 in and 28.03 lb, with 110W more rated output at STC. Neither rating predicts daily harvest. Both data sheets print the same 23% efficiency figure, which our arithmetic doesn’t reproduce from the listed outlines, the same 10-year product and 25-year performance warranty, and no named certification, and Battle Born publishes no test behind ShadeGuard. Draw the roof to scale, check the charge controller against each panel’s open-circuit voltage, and confirm mounting and cabling separately, because these are panels, not kits.
Specifications checked September 24, 2026, and rechecked October 3, 2026. Official photographs used with permission.
Quick answers
- Does a 230W panel always produce 230 watts?
- No. A panel rating is not a guarantee of continuous output or daily energy. Sun, shade, orientation, temperature and system losses affect the result.
- Are these complete solar charging kits?
- The reviewed listings are for Battle Born Elite rigid panels. Confirm mounting hardware, cables and a compatible charge controller separately.
- Do Battle Born Elite solar panels list a UL or IEC certification?
- No. Neither the Battle Born Elite 120W (BBPV-12-120) data sheet nor the Elite 230W (BBPV-12-230) data sheet names a certification or test standard, and neither product page lists one in its text. Both sheets do define their ratings at STC, "Irradiance 1000W/m², AM1.5 spectrum, module temperature 25°C", and list a "1000V DC" maximum system voltage. Where an inspection or insurer needs a listed panel, that has to be confirmed with Battle Born directly.
- What does Battle Born's ShadeGuard technology actually do?
- Battle Born doesn't publish a mechanism or a test. The Elite 120W and 230W product pages say that with "ShadeGuard™ anti-shading technology" each panel "maintains strong output even in partial shade", and the Elite data sheets say "Anti-Shading Technology Delivers reliable energy production even in partial shade or low-light conditions." Neither the pages nor the sheets give a bypass-diode count or any shaded-output figure, so Battle Born's own documents don't quantify the benefit.
- What warranty does Battle Born give on its Elite solar panels?
- The Battle Born Elite 120W and Elite 230W data sheets each print a "10 Year Product Warranty" and a "25 Year Performance Warranty". Those terms come from the data sheets linked from each product page rather than from the product-page text. Neither sheet prints the conditions or the claim process behind the performance warranty, so anyone relying on the output guarantee should ask Battle Born for the full written terms.
